SPECIFICATIONS

Brand Name: TPTEK

Origin: Mainland China

High Definition: 5.0 Megapixels

Supported Operating Systems: Windows 98

Supported Operating Systems: Windows XP

Supported Operating Systems: Windows Vista

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Supported Operating Systems: Windows 2000

Supported Operating Systems: Windows 2008

Supported Operating Systems: Windows 2003

Lens (mm): 3.6mm

Style: Bullet Camera

Connectivity: WIFI

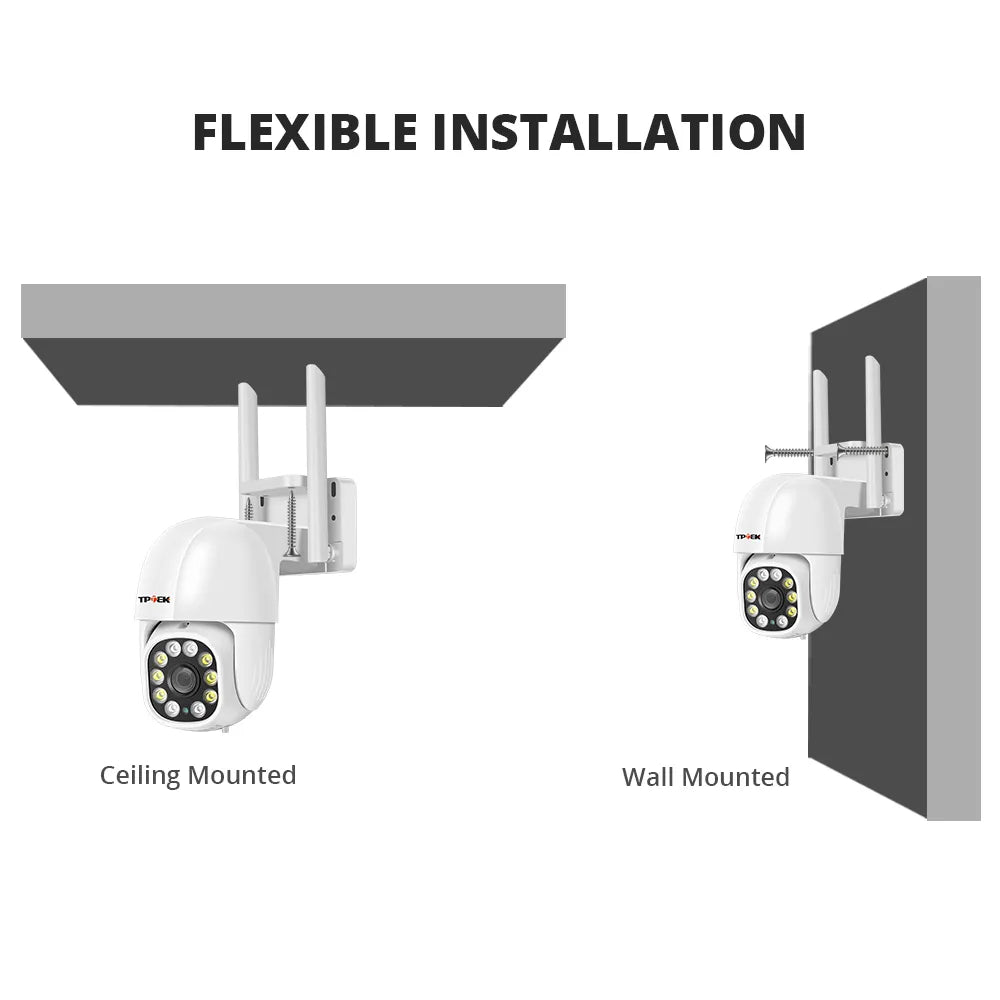

Installation: Side

Minimum Illumination(Lux): Color:0.5Lux (F1.2, AGC ON),0 LUX with IR

Scene: Indoor and Outdoor

Color Night Vision: YES

Megapixels: 5mp

Storage: None

Video Compression Format: H.264

Video Compression Format: H.265

IR Distance(m): 4Pcs Array Leds, 30M Night Vision

Certification: CE

Certification: FCC

Dimensions (L x W x D)(mm): 247mmx130mmx88mm

Color: White

Power Mode: Mains Electricity

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

Movement Range(Tilt): Other

is_customized: Yes

Model Number: 102JCH/105JCH

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

Smart home platform: Other

AI Functions: Motion Detection

IP Rating: IP66

Special Features: Waterproof / Weatherproof

App name: Other

TF Card: None

Digital Zoom: 4X

Power Supply(V): 12V 1A/ 2A

Rechargeable Battery Capability: Other

Audio Output: Two-Way-Audio

Power Consumption(W): 7W MAX

Sensor: CMOS

Sensor Brand: SONY

Operating Temperature: -10°-60°

Power Supply: Normal

Viewing Angle : 87°

Optical Zoom: NONE

Movement Range(Pan): 0°-360°

Rechargeable Battery: NONE

Two way audio: Yes,built in MIC and Speaker

APP: CamHi / CamHiPro

Motion detection: Push notifications to app / Email alerts with photo.

Camera Supported Wifi Frequency: 2.4GHz WiFi (Do not supported 5G WiFi)

Storage: Max.support 128Gb(TF Card Optional)

LEDs: 6Pcs White light/4Pcs IR LEDs

Remotely Control By APP: Horizontal rotation 180 degree, Vertical rotation 60 degree

Working Temperature Range: -35°C ~ 55°C

Network protocol: Rtsp / Http / P2P / FTP

NVR: Support third party NVR

Effective resolution: 2MP(1920X1080)/5MP(2560X1920)

3rd party software support list: Blue Iris, iSpy, Synology Nas, Qnap Nas.
